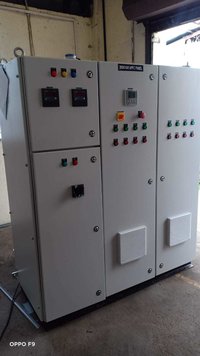

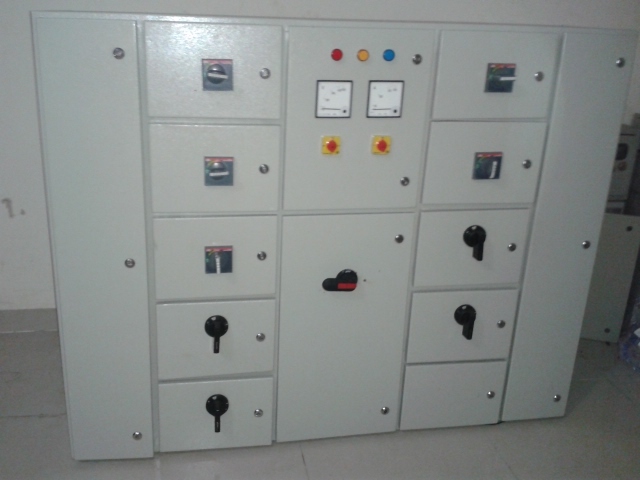

PCC Control Panel

Product Description

Power Control Centre

A Power Control Centre (PCC) is a main power control panel that contains feeder breakers and supply breakers, monitoring devices, control devices, switching devices, protection devices, and instrumentation devices. Alternatively, it is called the Main Switchboard. This type of switch is mainly installed near power sources, so its fault level is high. In order to function properly, it must be able to satisfy 50KA or 65KA fault levels for 1 second.

A Power Control Centers bus bar system is designed to handle fault levels and temperature rises up to 40 degrees Celsius. The termination of cables is provided with ample space. In order to protect the source and equipment, various protections are provided, such as short circuits, overloads, earth faults, under voltages, etc.

Advantages of Power Control Centre

• This Power Control Centre is compact, safe, and reliable.
• Users will find the Power Control Centre to be user-friendly.
• Power Control Center with single and multiple incomers, bus couplers, with proper interlocking on the main LT panel.
• The system provides the required protection, fault indications, and interlocking.
• The Power Control Center is offered in a variety of designs, such as top, middle, and bottom horizontal bus chambers, panels with aluminum/copper bus bars, top/bottom/front/rear cable terminations, and combinations with APFC Parts.
• Provide facilities such as DGIncomer with AMF functions and cut off non-essential feeders in the event of a power failure.
• On the main incomer side, a panel is provided with a provision for connecting the bus duct.
